产品型号参数

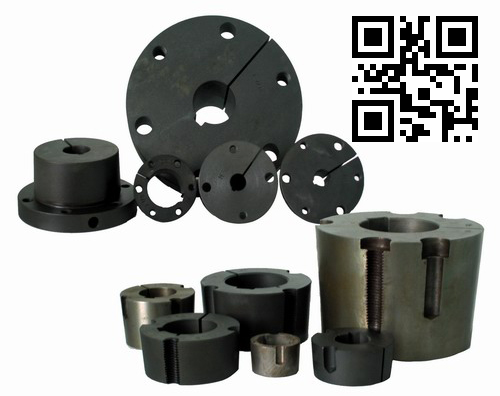

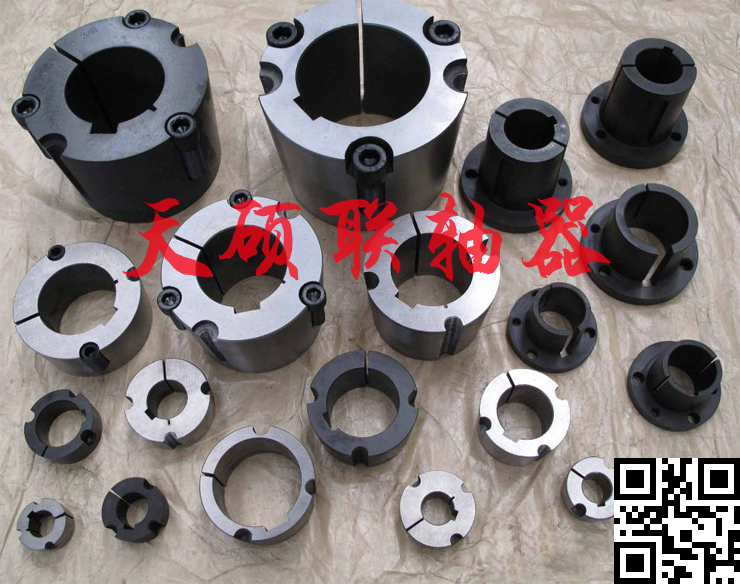

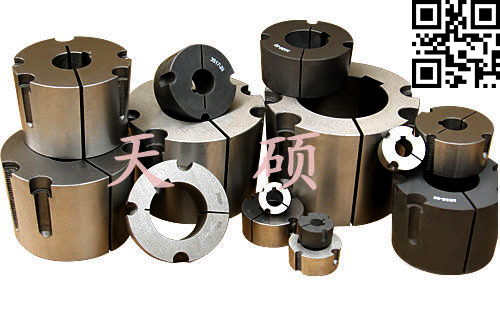

产品说明：
是一种欧美国家普遍使用的新型机械传动联接部件，具有标准化程度高、精度高、结构紧凑、安装拆卸方便等特点。通过8度外锥面与皮带轮、链轮及其他传动件内锥面压紧联接，使各种传动件的定心精度大大提高。锥套尺寸为系列标准设计。其内孔键槽按ISO标准加工。通用性互换性很好，适用各种场合.
当传动件经过长时间运转时，内孔及链槽就可能发生损坏，如果是使用这种锥套的传动件，发生这种情况时，只需更换同一规格锥套就可以恢复使用。因而大大提高传动件使用寿命，降低维修费用节省时间我厂批量生产各种与ISO锥孔皮带轮配套配合的锥套，有1008锥套，1210锥套，1610锥套，2012锥套，2517锥套，2525锥套，3020锥套，3030锥套，3525锥套，3535锥套，4030锥套，4040锥套等各种规格型号，锥套材质一般选用强度高、硬度适中的球墨铸铁制成，也可以根据用户要求定制。我厂生产的锥套材质均匀，强度高，质量可靠，价格合理，欢迎国内外老客户光临惠顾！

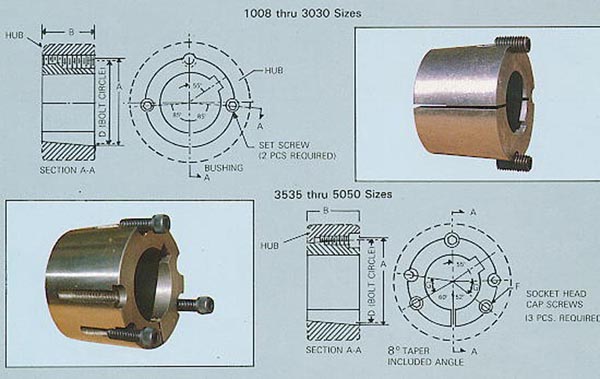

锥套的规格尺寸
1008-3030的尺寸
| 锥套型号 |
A |
B |
D |
螺钉直径x长度（2个螺钉） |
| 1008 |
1.386 |
7/8 |
1-21/64 |
1/4x1/2 |
| 1108 |
1.511 |
7/8 |
1-29/64 |
1/4x1/2 |
| 1210 |
1-7/8 |
1 |
1-3/4 |
3/8x5/8 |
| 1215 |
1-7/8 |
1-1/2 |
1-3/4 |
3/8x5/8 |
| 1310 |
2 |
1 |
1-7/8 |
3/8x5/8 |
| 1610 |
2-1/4 |
1 |
2-1/8 |
3/8x5/8 |
| 1615 |
2-1/4 |
1-1/2 |
2-1/8 |
3/8x5/8 |
| 2012 |
2-3/4 |
1-1/4 |
2-5/8 |
7/16x7/8 |
| 2517 |
3-3/8 |
1-3/4 |
3-1/4 |
1/2x1 |
| 2524 |
3-3/8 |
2-1/2 |
3-1/4 |
1/2x1 |
| 3020 |
4-1/4 |
2 |
4 |
5/8x1-1/4 |
| 3030 |
4-1/4 |
3 |
4 |
5/8x1-1/4 |
3535-5050的尺寸
| 锥套型号 |
A |
B |
D |
螺钉直径x长度（2个螺钉） |
G |
| 3535 |
5 |
3-1/2 |
4.83 |
1/2x1-1/2 |
40° |
| 4040 |
5-3/4 |
4 |
5.54 |
5/8x1-3/4 |
40° |
| 4545 |
6-3/8 |
4-1/2 |
6.13 |
3/4x2 |
40° |
| 5050 |
7 |
5 |
6.72 |
7/8x2-1/4 |
37° |
锥套的公制孔和键槽
| 孔径(mm) |
键槽(mm) |
锥套型号 |
| |
W |
D |
|
| 14,16 |
5 |
2.3 |
1008,1108,1210,1215,1610,1615 |
| 18,19 |
6 |
2.8 |
1008,1108,1210,1215,1610,1615,2012 |
| 20,22 |
6 |
2.8 |
1008,1108,1210,1215,1610,1615,2012,2517,2525 |
24 |
8 |
3.3 |
1108,1210,1215,1610,1615,2012,2517,2525 |
25 |
8 |
3.3 |
1210,1215,1610,1615,2012,2517,2525,3020,3030 |
| 28,30 |
8 |
3.3 |
1210,1215,1610,1615,2012,2517,3020,3030 |
32 |
10 |
3.3 |
1610,1615,2012,2517,3020,3030 |
35 |
10 |
3.3 |
1610,1615,2012,2517,3020,3030,3535 |
38 |
10 |
3.3 |
1610,1615,2012,2517,3020,3030,3535 |
| 40,42 |
12 |
3.3 |
2012,2517,3020,3030,3535,4040 |
| 45,48,50 |
14 |
3.8 |
2012,2517,2525,3020,3030,3535,4040 |
55 |
16 |
4.3 |
2517,2525,3020,3030,3535,4040,4545 |
60 |
18 |
4.4 |
2517,2525,3020,3030,3535,4040,4545,5050 |
65 |
18 |
4.4 |
3020,3030,3535,4040,4545,5050 |
| 70,75 |
20 |
4.9 |
3020,3030,3535,4040,4545,5050 |
| 80,85 |
22 |
5.4 |
3535,4040,4545,5050 |
90 |
25 |
5.4 |
3535,4040,4545,5050 |
95 |
25 |
5.4 |
4040,4545,5050 |
100 |
28 |
6.4 |
4040,4545,5050 |
105,110 |
28 |
6.4 |
4545,5050 |
115,120,125 |
32 |
7.4 |
5050 |
锥套的英制孔和键槽
| 孔径(inch) |
键槽W x D(inch) |
锥套型号 |
| 1/2 |
1/8x1/16 |
1008,1108,1210,1215,1310,1610,1615,2012,2517 |
| 9/16 |
1/8x1/16 |
1008,1108,1210,1215,1310,1610,1615,2012, |
| 5/8,11/16 |
3/16x3/32 |
1008,1108,1210,1215,1310,1610,1615,2012,2517, |
| 3/4 |
3/16x3/32 |
1008,1108,1210,1215,1310,1610,1615,2012,2517,2525, |
| 13/16 |
3/16x3/32 |
1008,1108,1210,1215,1310,1610,1615,2012,2517, |
| 7/8 |
3/16x3/32 |
1008,1108,1210,1215,1310,1610,1615,2012,2517,2525,3020 |
| 15/16 |
1/4x1/8 |
1108,1210,1215,1310,1610,1615,2012,2517,3020,3030 |
| 1 |
1/4x1/8 |
1108,1210,1215,1310,1610,1615,2012,2517,2525,3020,3030 |
| 1-1/16 |
1/4x1/8 |
1210,1215,1310,1610,1615,2012,2517 |
| 1-1/8 |
1/4x1/8 |
1210,1215,1310,1610,1615,2012,2517,2525,3020,3030 |
| 1-3/16,1-1/4 |
1/4x1/8 |
1210,1215,1310,1610,1615,2012,2517,2525,3020,3030,3535 |
| 1-5/16 |
5/16x5/32 |
1310,1610,1615,2012,2517,3020,3030 |
| 1-3/8 |
5/16x5/32 |
1310,1610,1615,2012,2517,2525,3020,3030,3535 |
| 1-7/16,1-1/2 |
3/8x3/16 |
1610,1615,2012,2517,2525,3020,3030,3535,4040 |
| 1-9/16 |
3/8x3/16 |
2012,2517,3020,3030 |
| 1-5/8 |
3/8x3/16 |
2012,2517,2525,3020,3030,3535,4040 |
| 1-11/16,1-3/4 |
3/8x3/16 |
2012,2517,2525,3020,3030,3535,4040 |
| 1-13/16 |
1/2x1/4 |
2517,2525,3020,3030 |
| 1-7/8 |
1/2x1/4 |
2012,2517,2525,3020,3030,3535,4040 |
| 1-15/16 |
1/2x1/4 |
2517,2525,3020,3030,3535,4040,4545 |
| 2 |
1/2x1/4 |
2517,2525,3020,3030,3535,4040,4545 |
| 2-1/16 |
1/2x1/4 |
2517,3020,3030,4545 |
| 2-1/8,2-3/16,2-1/4 |
1/2x1/4 |
2517,2525,3020,3030,3535,4040 |
| 2-5/16 |
5/8x5/16 |
2517,2525,3020,3030,3535 |
| 2-3/8 |
5/8x5/16 |
2517,2525,3020,3030,3535,4040,4545 |
| 2-7/16 |
5/8x5/16 |
2517,2525,3020,3030,3535,4040,4545,5050 |
| 2-1/2 |
5/8x5/16 |
2517,2525,3020,3030,3535,4040 |
| 2-5/8 |
5/8x5/16 |
3020,3030,3535,4040,4545 |
| 2-11/16 |
5/8x5/16 |
3020,3030,3535,4040 |
| 2-3/4 |
5/8x5/16 |
3020,3030,3535,4040,4545 |
| 2-7/8 |
3/4x3/8 |
3535,4040,4545 |
| 2-15/16 |
3/4x3/8 |
3535,4040,4545,5050 |
| 3,3-1/8,3-3/16,3-1/4 |
3/4x3/8 |
4040,4545 |
| 3-3/8,3-7/16,3-1/2,3-5/8 |
7/8x7/16 |
4040,4545,5050 |
| 3-11/16 |
7/8x7/16 |
4040 |
| 3-3/4 |
7/8x7/16 |
4040,4545 |
| 3-7/8,3-15/16,4 |
1x1/2 |
4545,5050 |
| 4-1/8,4-3/16 |
1x1/2 |
4545 |
| 4-1/4 |
1x1/2 |
4545,5050 |
| 4-3/8,4-7/16,4-1/2 |
1x1/2 |
5050 |
| 4-7/8,4-15/16,5 |
1-1/4x7/16 |
5050 |
| 15/16,1 |
1/4x1/16 |
1008 |
| 1-1/16,1-1/8 |
1/4x1/16 |
1108 |
| 1-9/16,1-5/8 |
3/8x1/8 |
1610,1615 |
| 1-15/16,2 |
1/2x3/16 |
2012 |
| 2-13/16 |
3/4x1/4 |
3020 |
| 2-7/8,2-15/16,3 |
3/4x1/4 |
3020,3030 |
| 3-5/16,3-3/8,3-7/16,3-1/2 |
7/8x1/4 |
3535 |
| 3-7/8 |
1x1/4 |
4040 |
| 3-15/16 |
1x1/4 |
3535,4040 |
| 4 |
1x1/4 |
4040 |
| 4-3/8 |
1x1/4 |
4545 |
| 4-7/16 |
1x1/4 |
4040,4545 |
| 4-1/2 |
1x1/4 |
4545 |
| 4-15/16 |
1-1/4x1/4 |
4545 |
